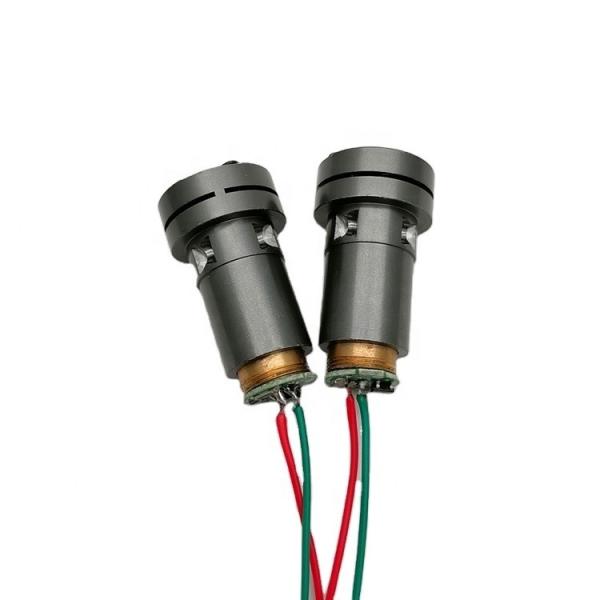

Spare Parts Type Laser Module Green Line Laser with Diode and Self Frequency Crystal

Name: Spare Parts Type Laser Module Green Line Laser with Diode and Self Frequency Crystal
Brand: Lasence
Price: 15.00 USD

Wholesale Spare Parts Type Laser Module Green Line Laser with Diode and Self Frequency Crystal from china suppliers

Place of Origin : China

Condition : New

Warranty : 1 Year

After-sales Service Provided : Free spare parts, Field maintenance and repair service, Online support

Spare Parts Type : Laser module

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product

Brand Name : Lasence

Key Selling Points : High stability, wide temperature range

Showroom Location : Germany

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 0.02 KG

Wavelength : 532nm ±2nm

Output Power for dot : 5-18mW

Output Power Mode : CW

Fan Angle : ~120°

Linewidth at 7m : 4mm

Line Curvature (mm) at 10m : ±0.5mm

Power Type : ACC

Voltage : 2.6-3.0V

Current : 380mA

Operating Temperature : -10 to 50℃

Price : $15.00/pieces 1-99 pieces

Contact Now

Products Description

Spare Parts Type Laser Module Green Line Laser with Diode and Self Frequency Crystal

Features：

· Gaussian Line

· Wide Temperature Range

· Fast Rise Time

· High Reliability

Dimensions (Unit: mm)

Wavelength	532nm±2nm
Output Power for dot	7-18mW
Operating Case Temperature	-10 to 50℃
Power Stability	±33%
Line Width at 7m	Max 4mm
Woking Volatage	ACC-CW
Working Current	≤ 450mA
line straigtness at 10m	Max ±0.5mm

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
