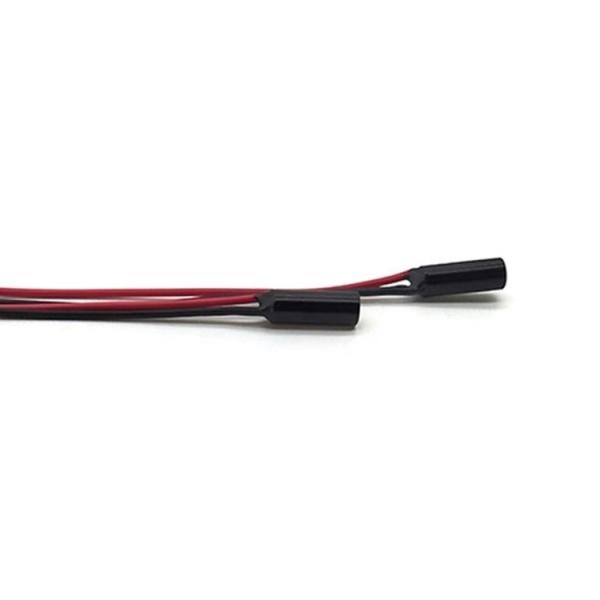

635nm 638nm Red Laser Diode Module with Adjustable Focus and 0.3mrad Beam Divergence

Name: 635nm 638nm Red Laser Diode Module with Adjustable Focus and 03mrad Beam Divergence
Brand: Lasence
Price: 50.00 USD

Wholesale 635nm 638nm Red Laser Diode Module with Adjustable Focus and 0.3mrad Beam Divergence from china suppliers

Place of Origin : Shandong, China

Condition : New

Warranty : 1 Year

After-sales Service Provided : Free spare parts, Field maintenance and repair service, Online support

Spare Parts Type : Laser module

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product

Brand Name : Lasence

Key Selling Points : High stability, wide temperature range

Showroom Location : Germany

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Weight (KG) : 0.01 KG

Wavelength : 635

Output Power : 2-5mW

Output Power Mode : CW

Beam Divergence : 0.3mrad

Beam Mode transverse : TEM00

LD Operating Voltage : 3V-4.5V

LD Operating Current : 40mA

Operating Temperature : -40 to 50℃

Beam Size at 25m : 5x10mm

Price : $50.00/pieces 1-99 pieces

Contact Now

Products Description

635nm 638nm Red Laser Diode Module with Adjustable Focus and 0.3mrad Beam Divergence

650nm Red Laser Diode Module 3V Dot Laser Gun Sight Special Accessories

Features：

· Small Size: φ12.7x27.5

· Wide Temperature Range

· Fast Rise Time

· High Reliability

Good beam spot

650nm Red Laser Diode Module 3-12V Dot Laser Gun Sight Special Accessories

Specifications

Wavelength	635nm ± 5nm
Output power	3-5mW
Beam Size at 25m	5x10mm
Beam Divergence ( Full angle, Typ. )	'0.2-0.3mrad
LD Working Voltage	3-4.5V
LD Working Current	~40mA

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃. These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
